Back to Product: 609 - Straight Line Action Clamp
Click Image to Zoom

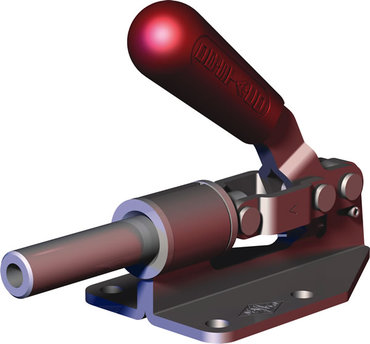

609 - Straight Line Action Clamp
Low profile, Locks in both extended and retracted position, Flanged base
| Part #: 609 | Manufacturer: Destaco |
|
Price: $31.66
|
Availability :
(0)
Call for availability |
|
|
UOM: N/A |
Description
Destaco’s 609 Series straight line action clamps feature a low profile, high holding capacity for its size, and allow the handle to rotate then fall below the mounting plane to lock in retracted position.
Product Specifications
| Holding Capacity (lbf): | 300 |
| Product Height: | 3.17 |
| Product Length: | 5.46 |
| Product Width: | 2.19 |
| Weight lbs: | 0.88 |
| Base Mounting Style: | Flange |
| Clamp Product Type: | Standard |
| Plunger Height (In): | 0.97 |
| Plunger Travel (In): | 1.25 |
| Standard Material: | Steel |
| Toggle Lock Plus: | No |
Safety Notice
| Part Number Tags: | N/A |
Product Resources
N/A
N/A
Low profile, Locks in both extended and retracted position, Flanged base
