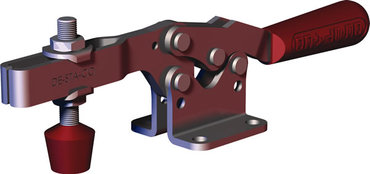

235-U 235 - Horizontal Hold-Down Toggle Locking Clamp

235 - Horizontal Hold-Down Toggle Locking Clamp

Clamp supplied with neoprene spindle, Low profile

Part #: 235-U Manufacturer: Destaco
Price: $31.28Out of Stock
 Availability : Out of Stock(0)
Call for availability
UOM: N/A


Description

Low profile, horizontal hold down clamp with neoprene spindle, flanged base, and U-bar.
Maximum Holding Capacity:750 lbs

Product Specifications


Clamp Arm Length (in): 4.17
Holding Capacity (lbf): 750
Product Height: 2.56
Product Length: 10.7
Product Width: 2.26
Weight lbs: 1.48
Base Mounting Style: Flange
Clamp Arm Style: U-Bar
Clamp Bar Opening (+10°): 92
Clamp Product Type: Standard
Handle: Horizonal
Standard Material: Steel
Toggle Lock Plus: No
