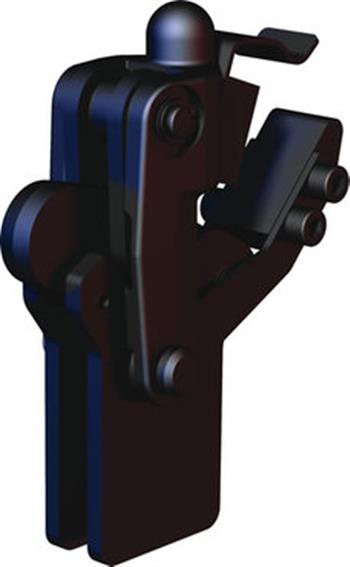

501 - Vertical Hold-Down Toggle Locking Clamp
Modular design, Hardened pivot pins and bushings, Weldable clamping arm, Bar opens 200 degrees to clear work area, Pipe handle, mounting base, and bar options available
| Part #: 503-MLBLSC | Manufacturer: Destaco |
| Call for availability | Availability : Call to order |
| UOM: N/A |
Description
Destaco’s 501-B Series vertical, weldable hold down toggle locking clamps feature a modular design, weldable clamping arm, and hardened pivot pins/bushings.
Product Specifications
| Clamp Arm Length (in): | 0.53 |
| Holding Capacity (lbf): | 1500 |
| Product Height: | 5.48 |
| Product Length: | 3.08 |
| Product Width: | 1.52 |
| Weight lbs: | 1.98 |
| Base Mounting Style: | Long with locking spring clip |
| Clamp Arm Style: | Weldable |
| Clamp Bar Opening (+10°): | 200 |
| Clamp Product Type: | Modular Hold-Down Clamps |
| Handle: | Vertical |
| Standard Material: | Forged alloy steel |
| Toggle Lock Plus: | No |
