Back to Product: 5130/5131/5133 - 5000 Series Heavy Duty Straight Line Action Clamps
Click Image to Zoom

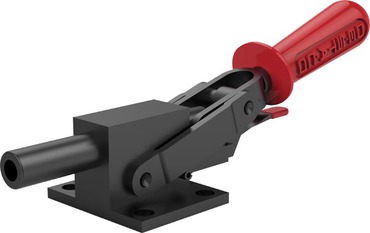

5130/5131/5133 - 5000 Series Heavy Duty Straight Line Action Clamps
Hardened plungers, Reverse acting (handle rotates backward as plunger advances) for a low profile, keeps handle out of the work zone, Hardened steel pivot pins and bushings for long life, Black oxide finish
| Part #: 5130-R | Manufacturer: Destaco |
| Call for availability | Availability : Call to order |
| UOM: N/A |
Description
Destaco’s 5130 Series straight line, flange base clamps feature reverse action, hardened steel pivot pins and bushings, and Toggle Lock Plus capability.Maximum Holding Capacity:5800 lbs
Product Specifications
| Product Height: | 3.63 |
| Product Length: | 11.14 |
| Weight lbs: | 3.03 |
| Holding Capacity (lbf): | 5800 |
| Product Width: | 2.99 |
| Base Mounting Style: | Flange |
| Handle Opening (Degrees): | 125 |
| Plunger Height (In): | 1.38 |
| Plunger Travel (In): | 1.75 |
| Standard Material: | Steel |
| Toggle Lock Plus: | Yes |
Safety Notice
| Part Number Tags: | N/A |
Product Resources
N/A
N/A
Hardened plungers, Reverse acting (handle rotates backward as plunger advances) for a low profile, keeps handle out of the work zone, Hardened steel pivot pins and bushings for long life, Black oxide finish
