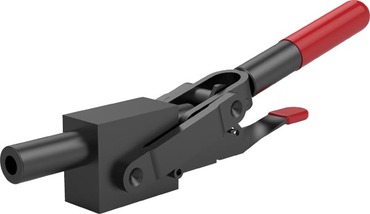

5130/5131/5133 - 5000 Series Heavy Duty Straight Line Action Clamps
Hardened plungers, Reverse acting (handle rotates backward as plunger advances) for a low profile, keeps handle out of the work zone, Hardened steel pivot pins and bushings for long life, Black oxide finish
| Part #: 5131-BR | Manufacturer: Destaco |
| Call for availability | Availability : Call to order |
| UOM: N/A |
Description
5130/5131/5133 - 5000 Series Heavy Duty Straight Line Action ClampsMaximum Holding Capacity:2500 lbs
Product Specifications
| Holding Capacity (lbf): | 2500 |
| Product Width: | 1.14 |
| Product Height: | 2.25 |
| Weight lbs: | 0.88 |
| Product Length: | 7.61 |
| Base Mounting Style: | Solid |
| Handle Opening (Degrees): | 113 |
| Plunger Height (In): | 0.87 |
| Plunger Travel (In): | 1 |
| Standard Material: | Steel |
| Toggle Lock Plus: | Yes |
Safety Notice
| Part Number Tags: | N/A |
Product Resources
N/A
N/A
Hardened plungers, Reverse acting (handle rotates backward as plunger advances) for a low profile, keeps handle out of the work zone, Hardened steel pivot pins and bushings for long life, Black oxide finish
