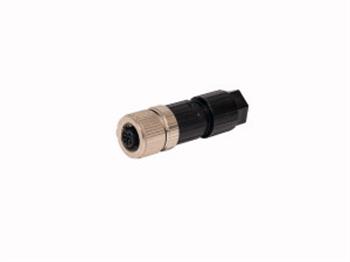

M12 Connector
Field Wireable connectors built to M12 standard for use with an existing cable. These connectors typically feature a cord grip for sealing around the cable and can have connector, screw terminal or insulation displacement type wire connections.
Part #: FW-ERKPM0426-SA-P-0408 | Manufacturer: Turck |
Price: $25.70
|
Availability :
(0)
Call for availability |
|
UOM: N/A |
Description
Push-in connection, A-coding, 4-pin, Flammability class acc. to UL 94 V0, Cable feedthrough: 4.0…8.0 mm, Terminal capacity:, 0.14…0.75 mm² (without cable end sleeve), 0.08…0.5 mm² (with cable end sleeve), Approval: cULus, RoHS compliant, Protection class: IP65, IP67Product Specifications
Connector 1: | M12F |
Pins: | 4P |
Cord Length: | N/A |
AC/DC Volts & Amps: | 250 VAC / 250 VDC / 4 Amps |
Connector 2: | Push-In |
Lighted: | No |
Cord Series: | M12 Connector |
Cord Type: | Connector |
